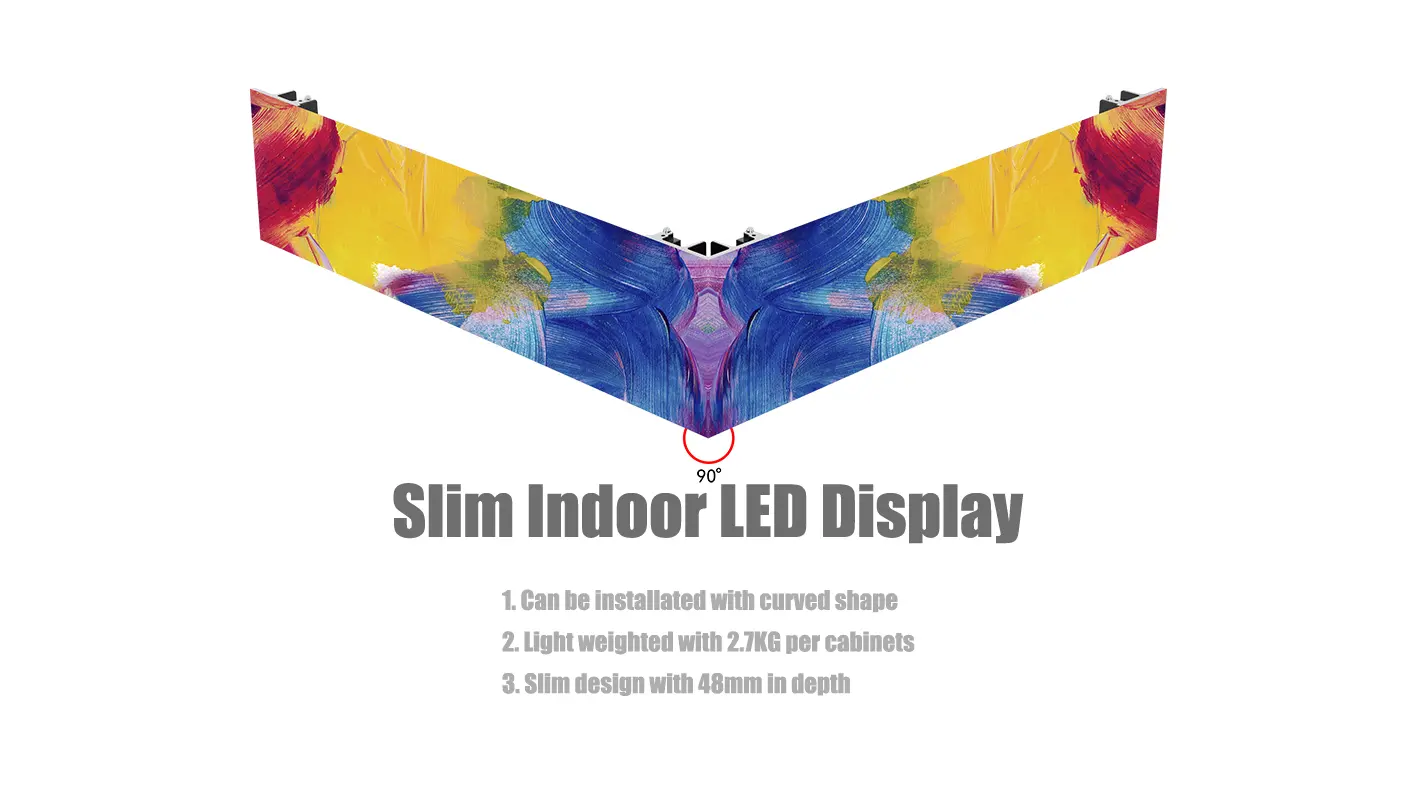

Slim Indoor LED Display Series
Slim Indoor LED Display Series

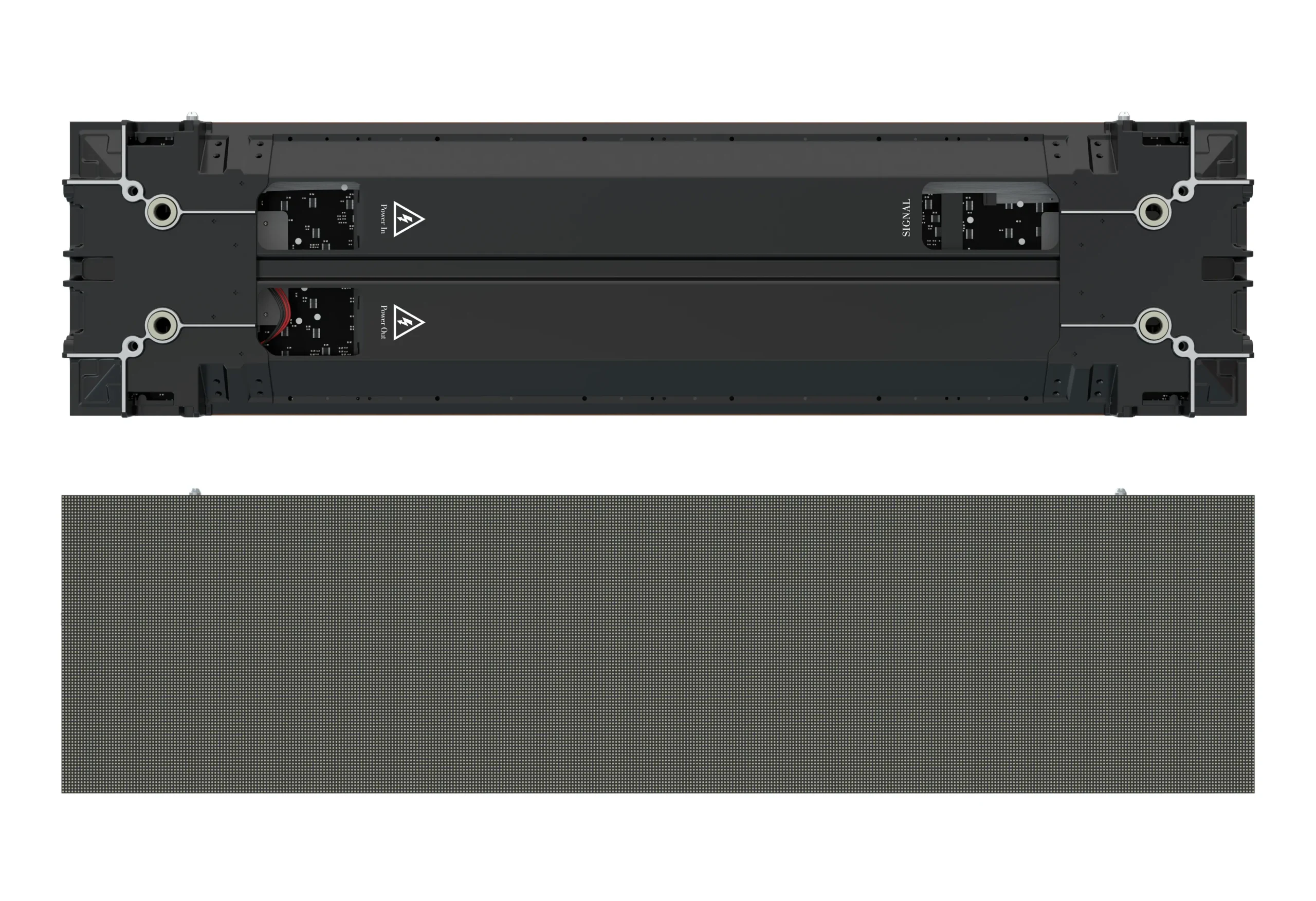

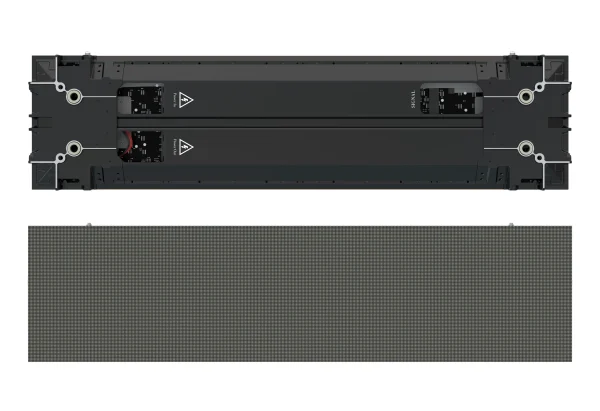

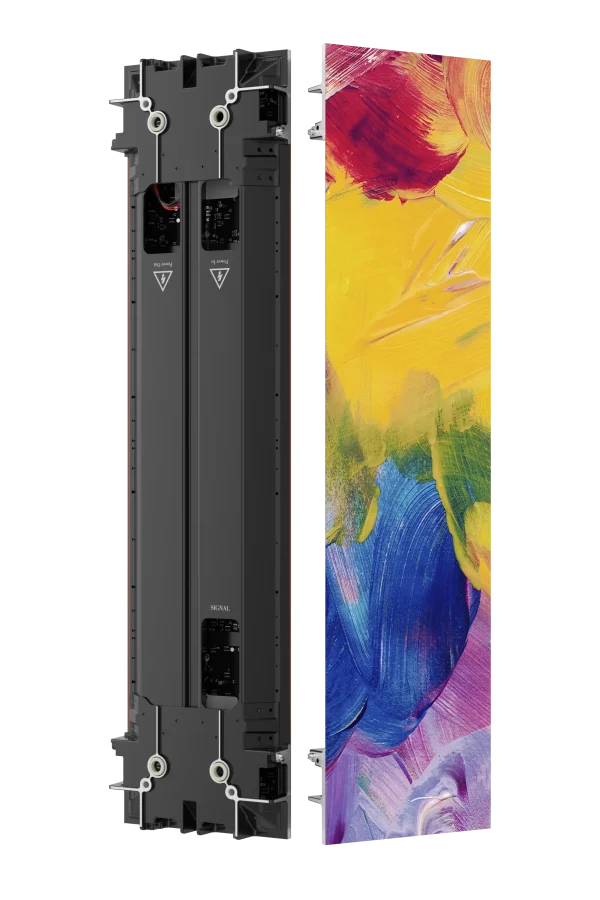

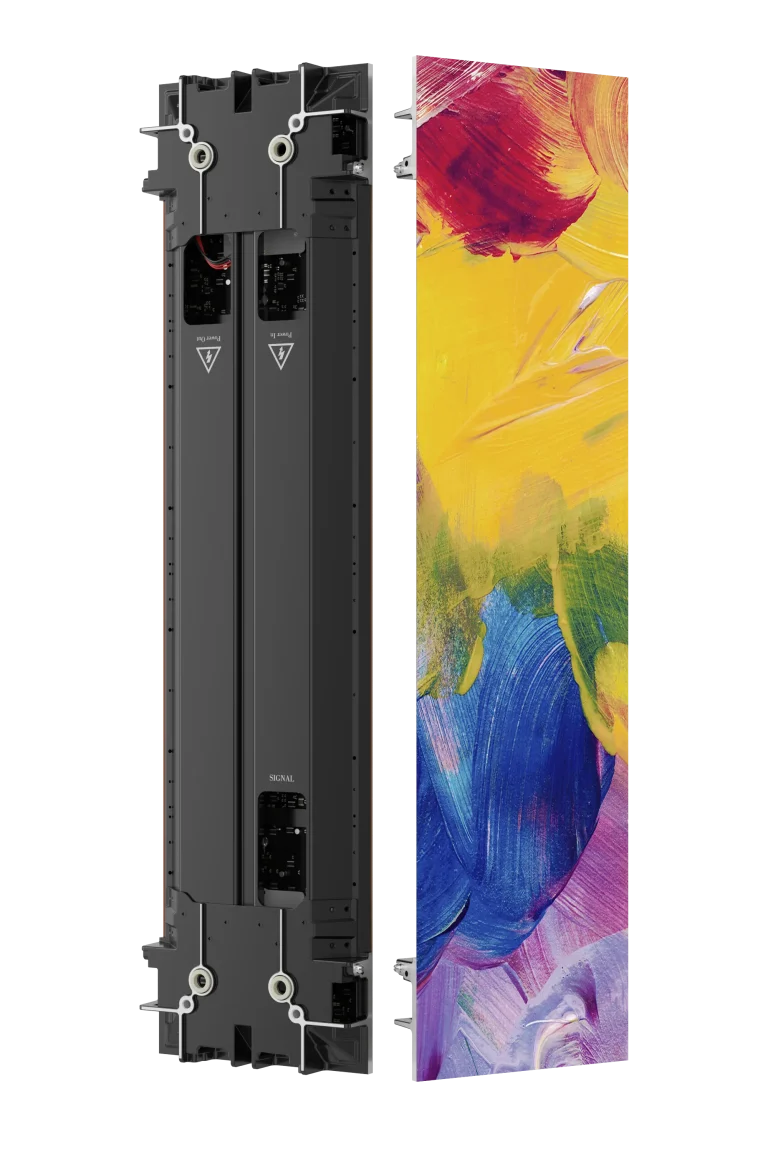

Ultra-thin box design, Cabinet only 48MM.
Light weight,Max at 5.8kg.
The design of the main and auxiliary cabinets can be shared in left and right series and up and down, providing a more cost-effective solution(P1.95/P2.6/P3.9).
The same module structure is designed for different point spacings, and the cabinet structure is shared. There is no need to disassemble the steel structure and cabinet, and the modules can be replaced at will.(P1.95/P2.6/P3.9).

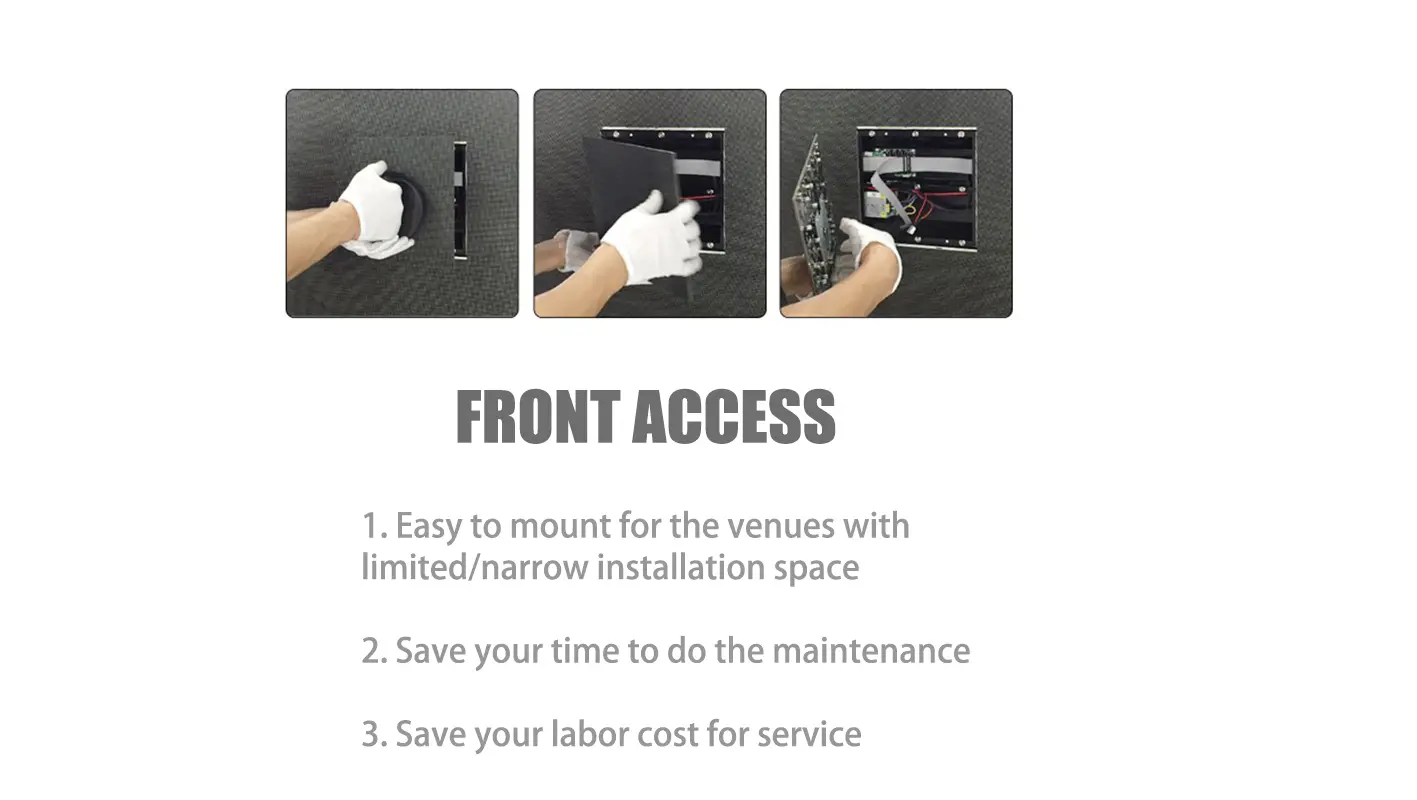

Full front maintenance and installation design, saving installation space.
Share to:
|
Model |
SLIM STD VERSION( Standard Brightness) |
SLIM HB VERSION( High Brightness) |
||||
|
STD P1.95 |
STD P2.6 |
STD P3.91 |
HBP1.95 |
HB P2.6 |
HB P3.91 |
|
|
Pixel Pitch(mm) |
1.95 |
2.604 |
3.906 |
1.95 |
2.604 |
3.906 |
|
Pixel Density(dot/㎡） |
262,144 |
147456 |
65536 |
262,144 |
147456 |
65536 |
|
LED Type |
SMD1515 |
SMD2020 |
SMD1415 |
SMD1921 |
||
|
Module Size(mm) |
250*250 |
|||||
|
Horizontal Viewing Angle(Deg.) |
160 |
|||||
|
Vertical Viewing Angle(Deg.) |
160 |
|||||
|
Brightness(cd/㎡) |
800 |
1200 |
2500 |
3000~4500 |
||
|
Grey Scale(bit) |
16 |
|||||
|
Refresh Rate(Hz) |
3840 |
|||||
|
Maximum Cabinet Power Consumption(w/pcs) |
53.36W / 80W / 106.72W |
46W / 69W / 92W |
53.36W / 80W / 106.72W |
73.6W / 110.4W / 147.2W |
||
|
WAverage Cabinet Power Consumption(w/pcs) |
21.3W / /32W / 42.7W |
18.4W / 27.6W / 36.8W |
21.3W / /32W / 42.7W |
29.44W / 44.16W / 67.2W |
||
|
Cabinet Size(mm*mm*mm) |
L500/750/1000*H250*T48 |
|||||
|
Cabinet Weight(Kg) |
3.6/4.7/5.8 |
|||||
|
Cabinet Resolution(Dots) |
256/384/512×128 |
192/288/384×96 |
128/192/256×64 |
256/384/512×128 |
192/288/384×96 |
128/192/256×64 |
|
Input Voltage(V) |
100-240V/50-60HZ |
|||||
|
Waterproof Level |
IP43/IP20 |
|||||
